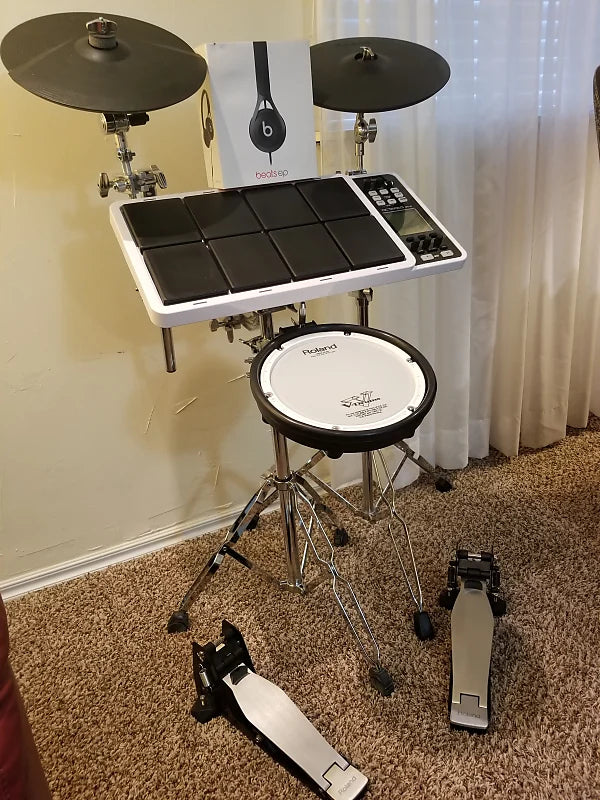

Accessories Roland SPD-30 Multi-Purpose Pad
Accessories Roland SPD-30 Multi-Purpose Pad
Reimagining the new classic multipurpose pad
The new version, Version 2, is a system upgrade, expanding the SPD-30 's built-in drum kit and phrase library, and adding new features and functions. Roland pioneered Octapad pads, profoundly changed the world after the introduction of an electronic percussion instrument. The Octapad , an all-in-one percussion pad the size of a briefcase, provides drummers and percussionists with functions and rich expressiveness equivalent to a complete set of equipment, making it an electronic percussion system that can perfectly provide stage support. Ten years later, Roland SPD-30 will be re-opened Octapad of wonderful music, SPD-30 brings together the most essence of percussion sounds in the world today, and combined with the latest pickup technologies, robust design to meet The demands of the most demanding players !
paddle
Built-in Strike Blocks : 8
* Four expansion phono input terminals are provided, allowing you to connect external pads.
instrument sound
670
drum kit
50
Drum Chain (Kit Chain )
8 sequences ( 20 steps per sequence)
Instrument parameters
Tuning (Tuning)
Muffling (silence)
Soft Attack (Soft Attack)
Tone Color (sound quality)
Pitch Sweep
Volume (volume)
Pan (left and right phase)
Reverse (reverse)
Effect type
Space ( 7 types), Equalizer, Limiter, Multi-Effect ( 30 types)
Phrase loop
Phrase: 50
Parts: 3
Speed: 40-260
Beat Resolution: 480 cents per quarter note
Recording Mode: Instant
The maximum capacity of notes: approximately 10, 000 tones
display
160x160 dots graphic LCD (backlit LCD screen)
Strike Status Indicator x8 ( LED )
connection terminal
Headphone terminal (stereo 1/4 inch headphone type)
Output terminals ( L/MONO , R ) ( 1/4 inch phone type)
MIX IN terminal (stereo 1/4 inch phone type)
EXTERNAL TRIGGER INPUT terminal x4
HH CTRL terminal, FOOT SW terminal ( 1/4 inch TRS phone type)
MIDI terminals ( IN , OUT )
USB MEMORY terminal ( USB flash drive)
USB MIDI terminal ( USB MIDI transmission)
output impedance
1.0k ohms
power supply
AC Transformer ( DC 9V )
current
600mA
Appendix
manual
AC Transformer ( PSB-1U )
Screw ( M5x12mm ) x4
Optional equipment
Pads ( PD series, PDX series, BT-1 )
Electronic Cymbals ( CY Series)
Bass Drum Pickup ( KD Series)
Hi-Hat ( VH-11 )
Hi-Hat Control Pedal ( FD Series)
Pad Stand ( PDS-10 )
Multifunctional Fixture ( APC-33 )
Traditional drum pickups ( RT-30H , RT-30HR , RT-30K )
switch pedal ( DP-2 )
Switch pedals ( FS-5U , FS-6 ),
Electronic drum monitor speakers: PM-10 , PM-30
V-Drums Accessory Pack: DAP-3
V-Drums Original Carpet: TDM-10
USB flash drive
* We cannot guarantee the proper operation of commercially available USB flash drives.
size and weight
width
541 mm
21-5/16 inches
deep
272mm
10-3/4 inches
high
88mm
3-1/2 inches
weight
3.8 kg
8 lbs. 7 oz.
